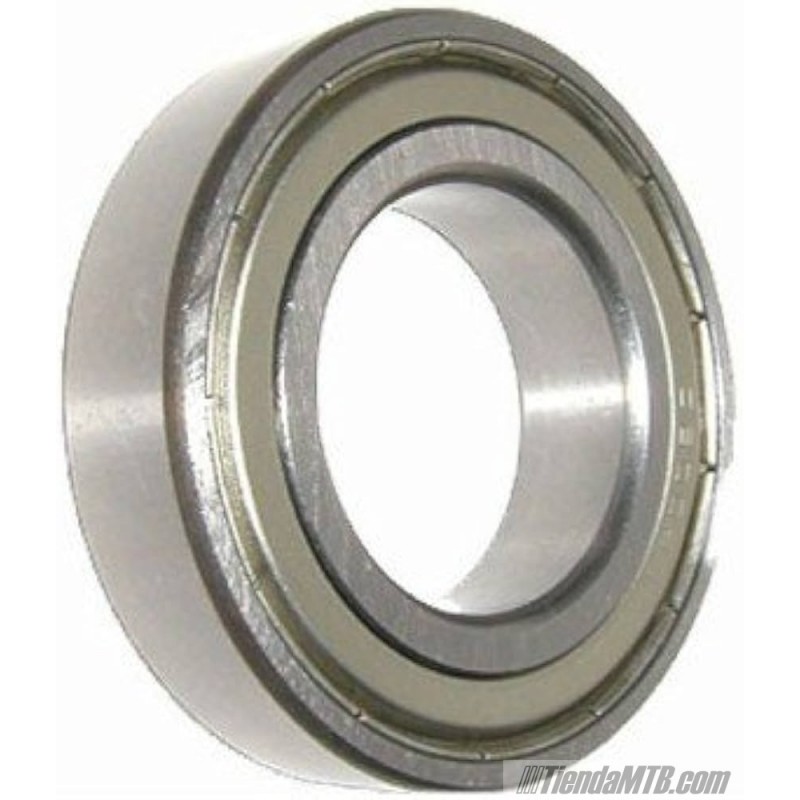

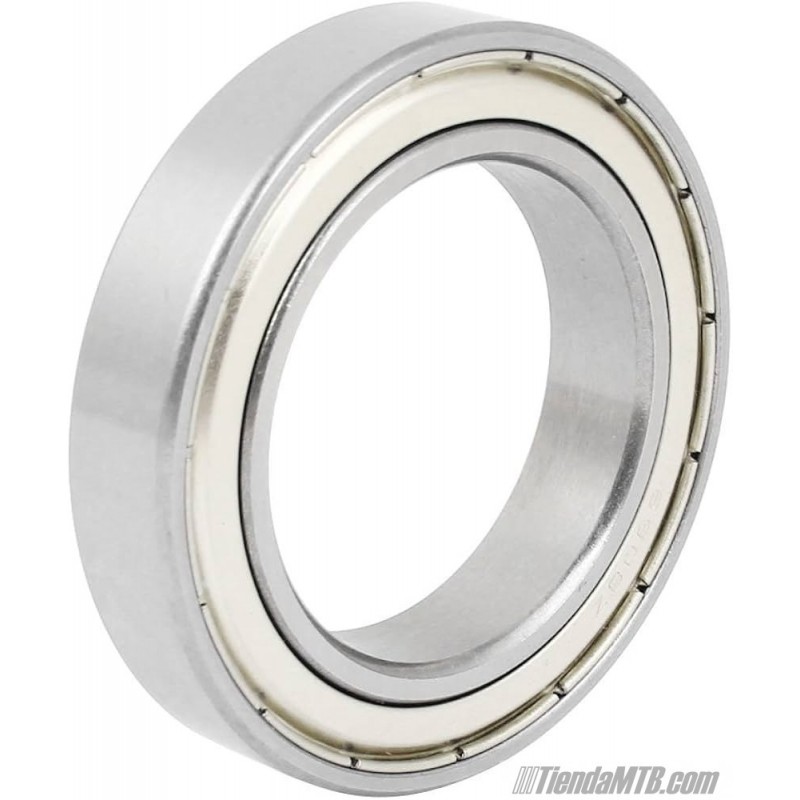

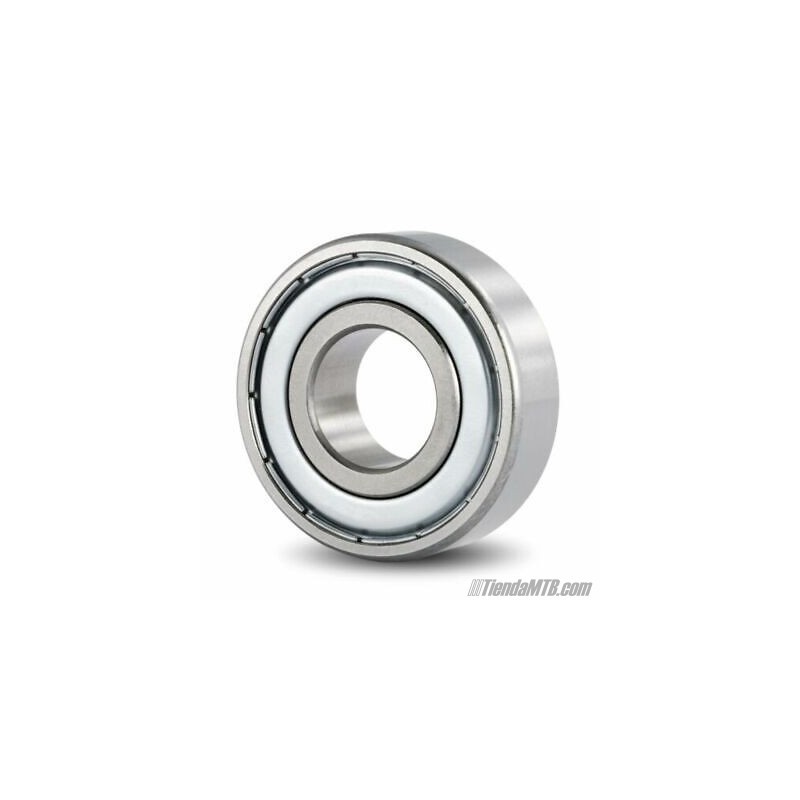

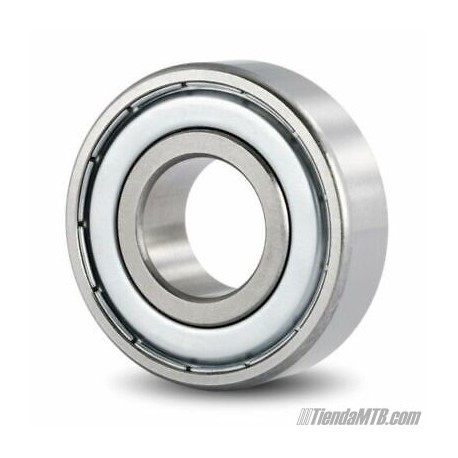

Shielded metallic bearing (Z)

Metallic or shielded bearings (ending with the code Z or ZZ) have a metallic seal in both sides that does not touch the inner ring. This seal of shielded bearings prevents grease from escaping and moderately protects against the entry of dirt, although it does not prevent the entry of finer dirt or water.

Their greatest advantage is that they do not have friction with the inner ring, so they are ideal for high performance and/or speed applications where we want minimal friction. If the bearing is going to be inside a machine where water or dirt does not enter, they are the best option.

Select the desired size (inner diameter x outer diameter x width) in mm. You can also search for it by the code that appears written on the outside of the bearing.

Sizes:

16x5x5 625Z
19x6x6 626Z
21x12x5 6801Z or 61801Z
22x7x7 627Z
22x8x7 608Z
22x10x6 6900Z or 61900Z
24x9x7 609Z
24x12x6 R-2412Z
26x10x8 6000Z
26x17x5 6803Z or 61803Z
28x12x8 6001Z
30x17x7 6903Z or 61903Z
32x12x10 6201Z
32x15x9 6002Z
37x25x7 6805Z or 61805Z
42x30x7 6806Z or 61806Z
47x35x7 6807Z or 61807Z

Ask availability.
