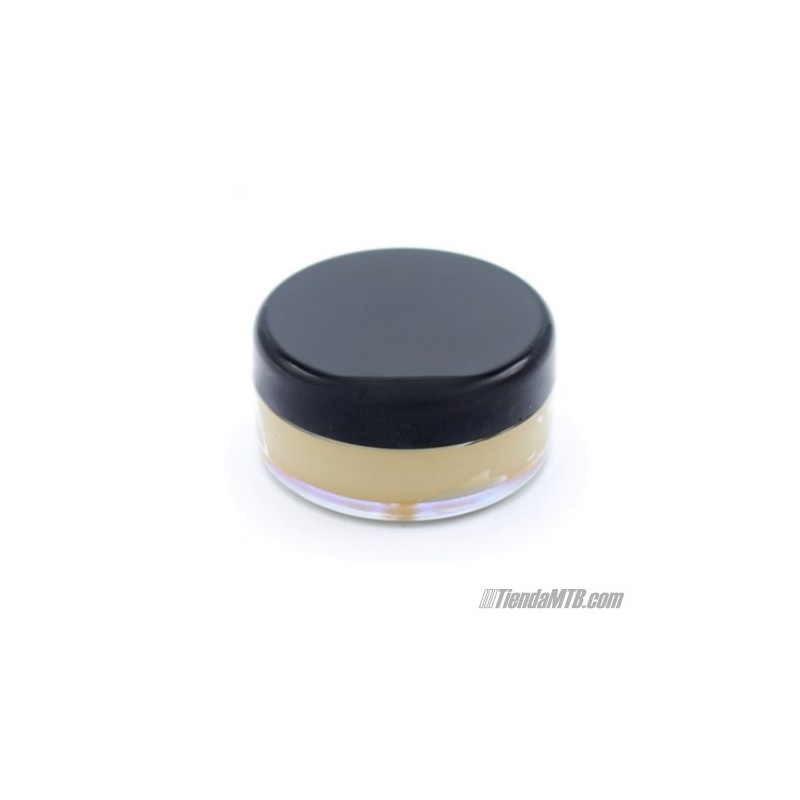

Sprag clutch bearing grease for ebike motors

ID: 2395-0

Ref:

Special grease that MUST be used in sprag clutch bearings of ebike motors (Brose and others). Sprag clutch bearings allow rotation of a shaft in one direction but not the other. These bearings require lubrication to work reliably, but also rely on friction when need to stop rotation, so you can't use Teflon or ceramic based greases made to slip. 5ml is a small pot but enough for both bearings.

Details

Facebook Whatsapp Email

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

We ship worldwide.
FREE shiping to Spain Mainland in orders above 100€.
Cheap shipping to some EU countries in orders above 100€.
Shipping with web tracking with the main couriers (UPS, DHL, SEUR,...)
Secure card payment through a payment gateway.

More info

2 sprag clutch bearings are used in every Brose motor, and other ebike motors use them too. Sprag clutch bearings allow rotation of a shaft in one direction but not the other. These bearings require lubrication to work reliably, but also rely on friction when they are required to stop rotation.

Special grease MUST be used. If a high pressure, or low friction grease like standard bearing grease, Teflon or ceramic based greases etc., the sprags will slip while under extreme load, causing a high wear rate. This can also cause the bearing to slip and grip violently causing premature failure.

This is a deliberately small pot of sprag bearing grease but still more than enough for both bearings. This grease should be applied as a thin film to the outside of the bearing and to lubricate the inner bearing race, a thin film of grease (approx 1mm thick) should be applied to the shaft that the bearing is to be fitted onto.

Now available in 5gr, 50gr and 120gr.
