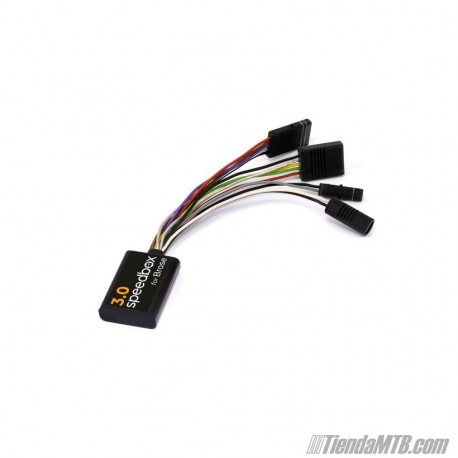

SpeedBox 3.0 for Brose ebike motors

SpeedBox 3.0 tuning product enables to select speed limit of your own choice. After the product is installed, your e-bike’s display will show real data, such as maximum and average speeds, daily mileage and cruising range.

The tuning kit can be activated directly on your bike’s controller. By activating the WALK assist function shortly a value of 9.9 km/h (6.2 mph) is displayed and from now on you will be able to ride at a speed of 40 km/h, 50 km/h and even more than 60 km/h.

To deactivate the tuning kit, activate the WALK assist function shortly again. The value of 2.5 km/h (1.6 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the tuning.

SpeedBox was also designed for e-bikes that do not have a classic control unit with WALK assist function. In this case you can just use the combination of + - + - buttons and SpeedBox will be activated. You can easily deactivate SpeedBox in the same way.

You can set the maximum speed of an electric assistance by switching modes three levels down and then three levels up: TURBO - TRAIL- ECO - OFF - ECO - TRAIL - TURBO. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by activating WALK assist function shortly or by turning the rear wheel 360°. The value of 1,5 km/h on the display corresponds with the limit of 15 km/h, 2 km/h corresponds with the limit of 20 km/h, 2,5 corresponds with 25 km/h, 3,0 corresponds with 30 km/h, 9,9 corresponds with 99 km/h etc. The last displayed limit will be saved after 5 seconds of inactivity.

The speed indication in the Specialized Mission Control app is not functioning correctly.

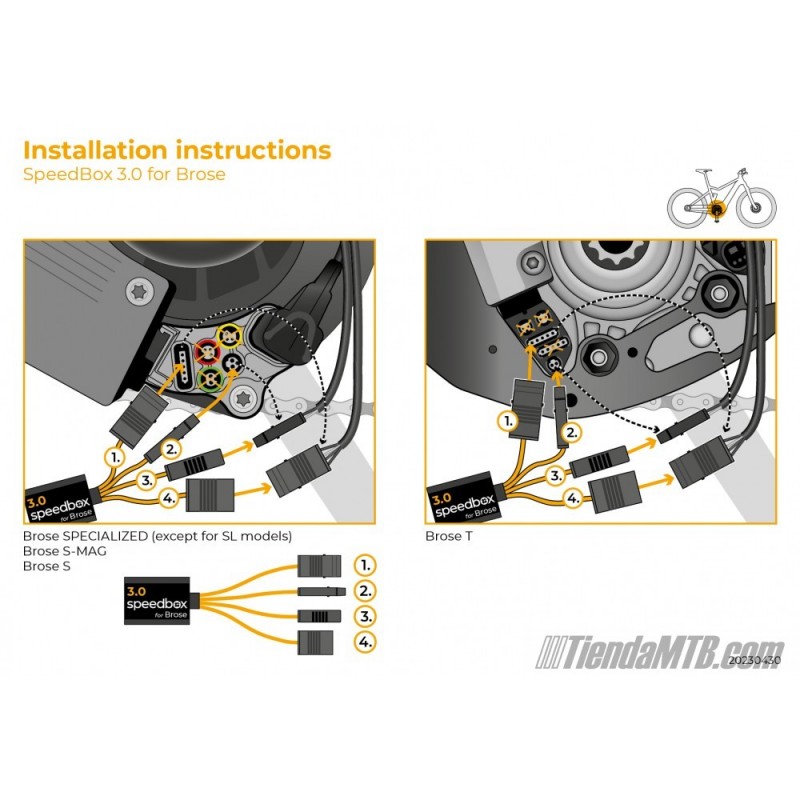

When connecting the SpeedBox chip to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.

NOTE FOR BROSE MOTORS: Version 3.0. Compatible with all Brose motors (S, T, MAG, Specialized), except for Specialized SL and Mag FIT motors. Activation with Walk button, or +-+-.

NOTE: If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 1 km before the chip is activated.

NOTE: In case of updating the software of your e-bike, uninstall SpeedBox from the e-bike first, update the software and reinstall SpeedBox.

Warning:

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk. The use of SpeedBox may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.
