Mahle 1.1 motor bearings

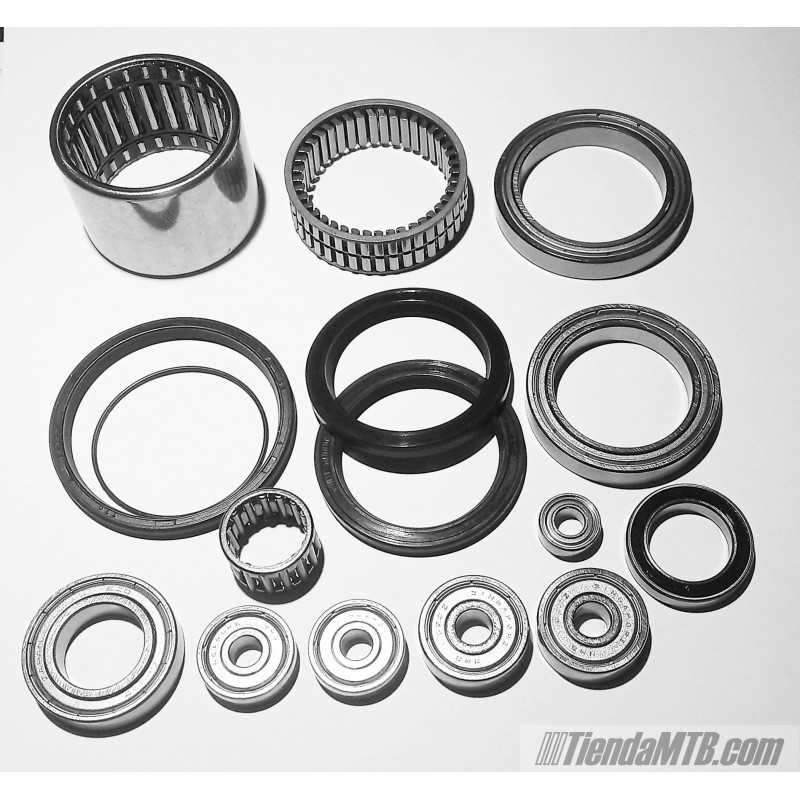

Mahle 1.1 ebike motor bearings to repair any Mahle 1.1 electric motor, like the motor Specialized SL 1.1, mounted on TURBOLEVO SL, KENEVO SL, TURBO VADO SL. See the photos to see the bearings included.

In the "Bearing" field select "Full kit" to buy all the bearings and seals, or select the needed bearing reference.

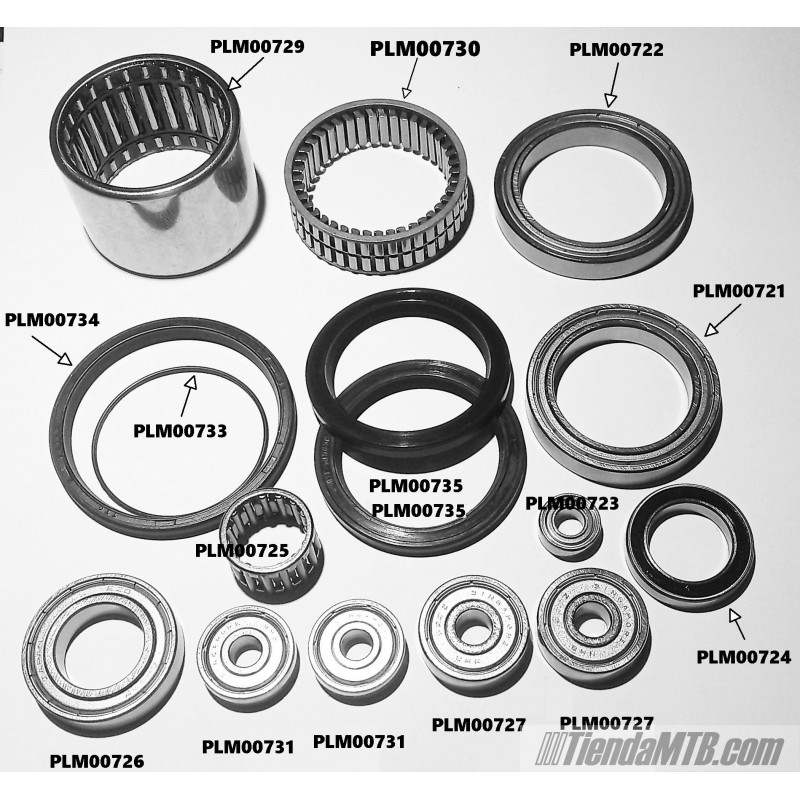

PLM00721    Left hand crankshaft bearing.
PLM00722    Right hand crankshaft bearing.
PLM00723    Sun gear spindle support bearing.
PLM00724    Sun gear support bearing.
PLM00725    Upper plastic transfer gear needle roller bearing.
PLM00726    Lower aluminium transfer gear bearing.
PLM00727    Wide plastic transfer gear lower bearing.
PLM00728    (same as PLM00727) Wide plastic transfer gear lower bearing.
PLM00729    Sprocket drive gear clutch bearing.
PLM00730    Sprag clutch bearing.
PLM00731    Motor armature bearing top.
PLM00732    (same as PLM00731)Motor armature bearing bottom.
PLM00733    Sprag bearing oring seal.
PLM00734    Right hand seal 52mm.
PLM00735    Right hand seal 45mm.
PLM00736    (same as PLM00735) Left hand seal 45mm.

NOTE: Not original bearings but fully compatible.

NOTE: To change the bearings of a Mahle 1.1 motor it is advisable to have a good knowledge of mechanics and experience changing motor bearings. Changing them yourself voids all warranty on the motor and we are not responsible for damage caused by improper installation.
