Yamaha white plastic gear assembly

ID: 263-0

Ref:

Yamaha white plastic gear assembly for PW, PW-SE, ST, TE, CE and PW-X, X2, X3 ebike motors. Includes the white nylon gear, the center steel spindle, bearing and clutch, all ready to be mounted.

IMPORTANT: we have 4 different models, so look the photos carefully to see whats your model. Detailed description below.

Details

Facebook Whatsapp Email

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

We ship worldwide.
FREE shiping to Spain Mainland in orders above 100€.
Cheap shipping to some EU countries in orders above 100€.
Shipping with web tracking with the main couriers (UPS, DHL, SEUR,...)
Secure card payment through a payment gateway.

More info

Yamaha and Giant white plastic gear assembly for PW, PW-SE, ST, TE, CE and PW-X, X2, X3 ebike motors. Includes the white nylon gear, the center steel spindle with gear and new lower support bearing and clutch bearing fitted, all ready to be mounted.

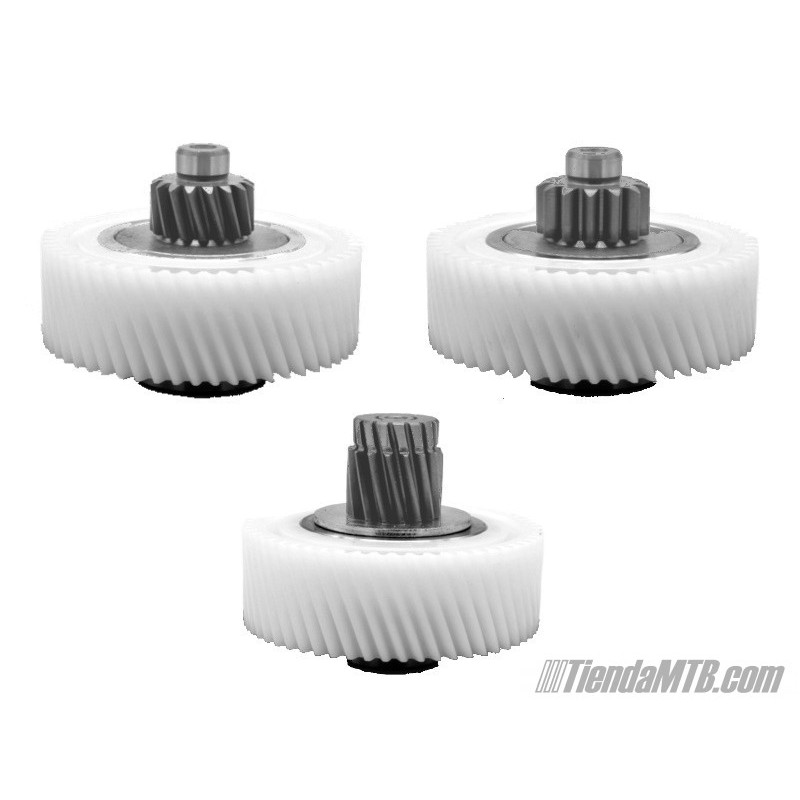

Available in 4 different options:

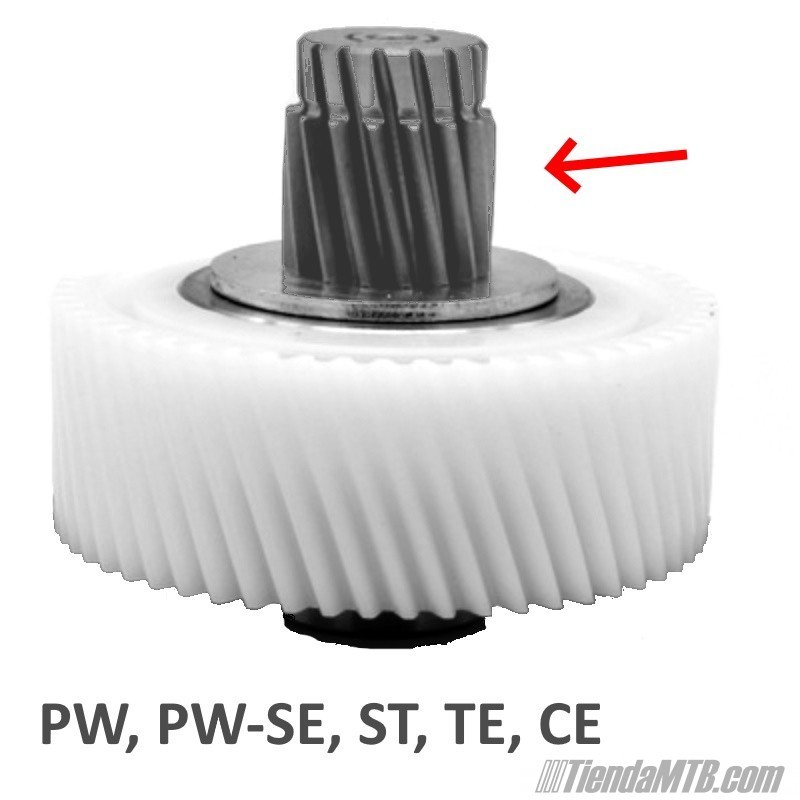

- PW, PW-SE: For Yamaha PW 1-2-3 series, and PW-SE. 61mm gear diameter and 22m height.

- PW-ST, PW-TE, PW-CE: 59mm diameter and 20mm height.

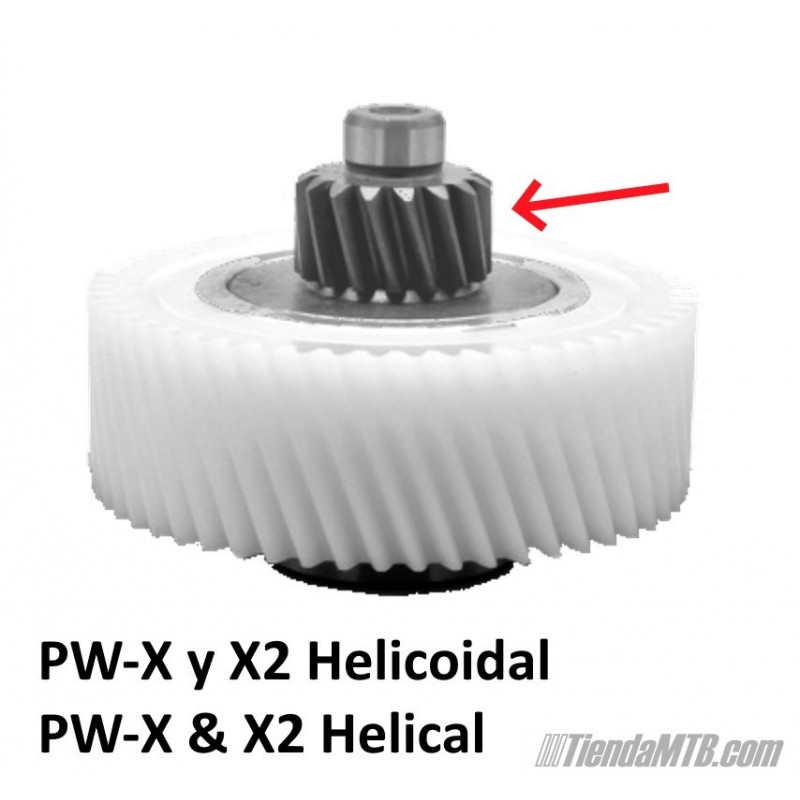

- PW-X & PW-X2 Helical: For Yamaha PW-X & PW-X2 with helical spindle gear.

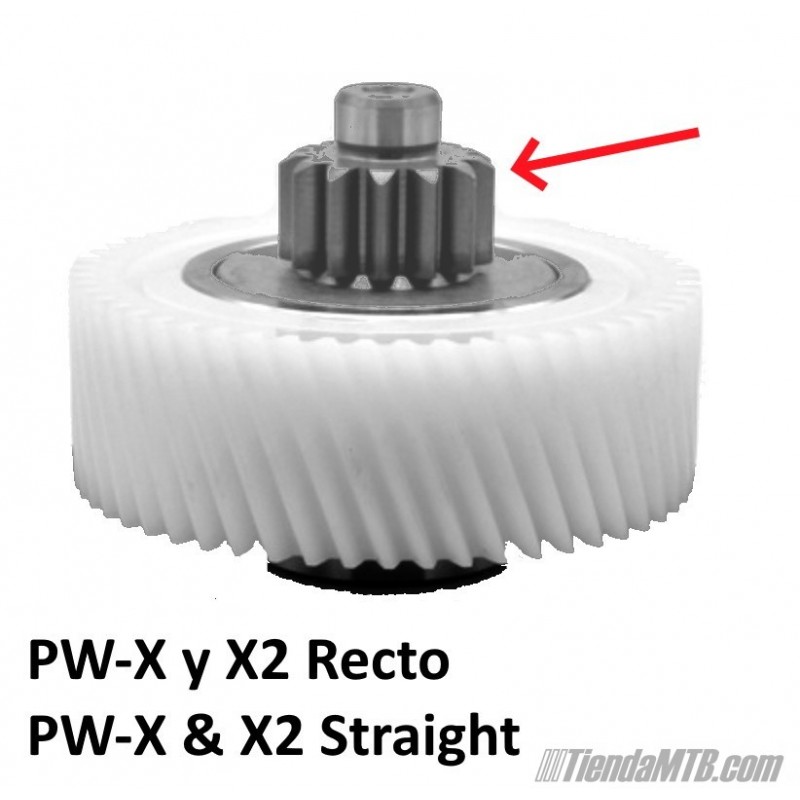

- PW-X & PW-X2 Straight: For Yamaha PW-X & PW-X2 with straight spindle gear.

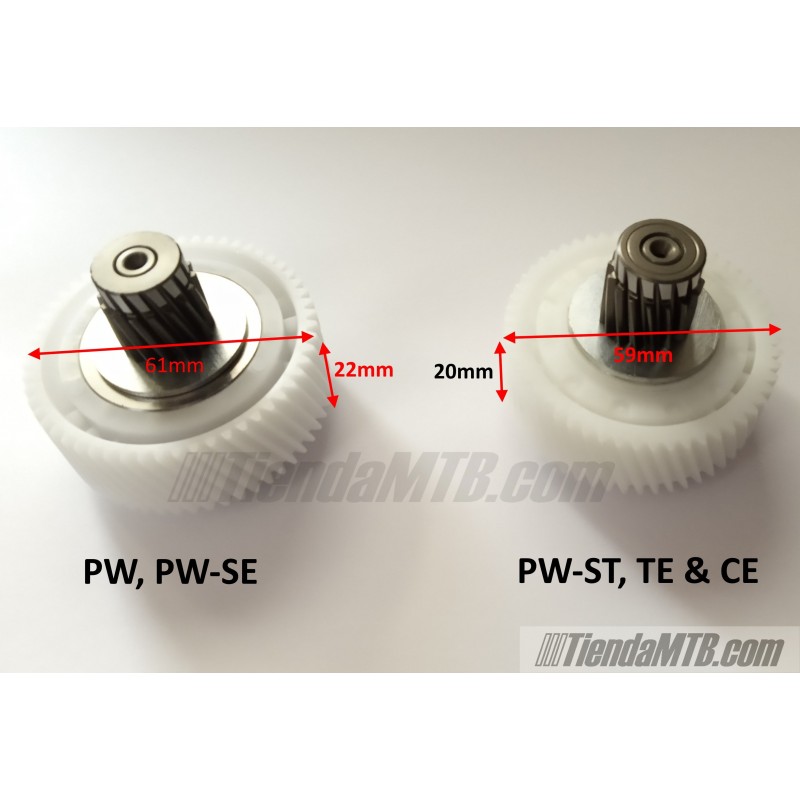

NOTE that PW, PW-SE and the PW-ST,TE & CE are visually very similar. View the second photo and check the diameter of your nylon gear.
